Support Table
Heavy-duty dual arm support. Precision worm gear drive. Built for large workpiece CNC machining.
Support Table

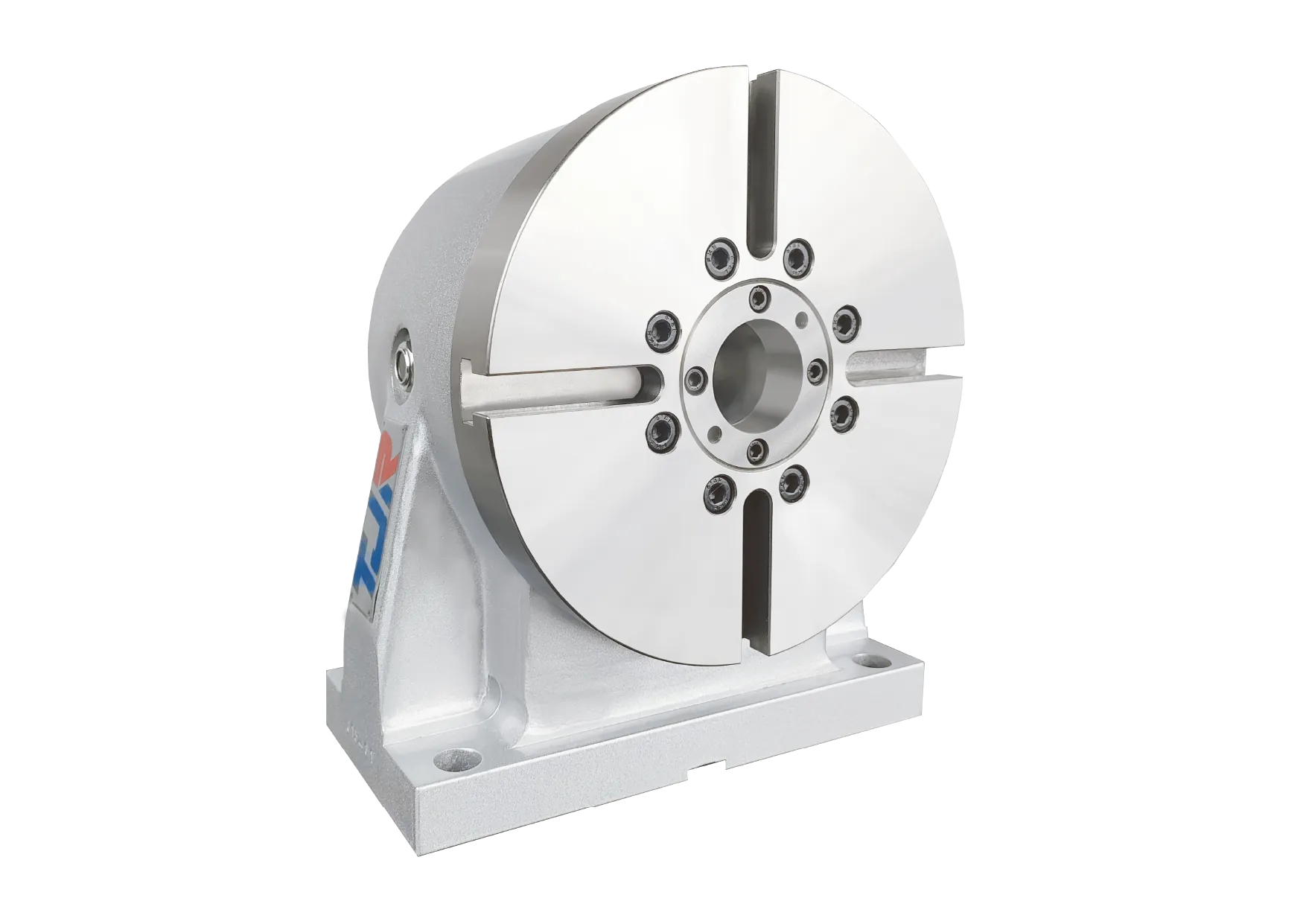

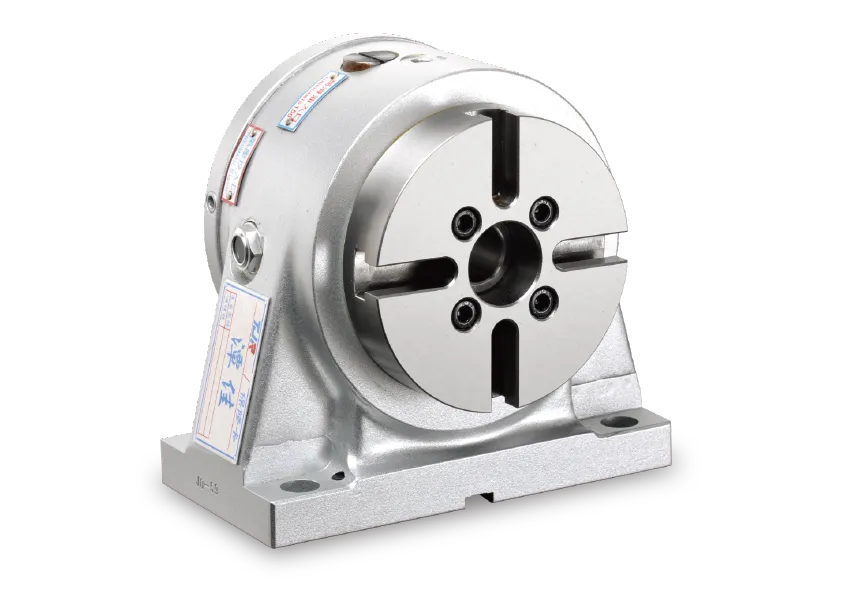

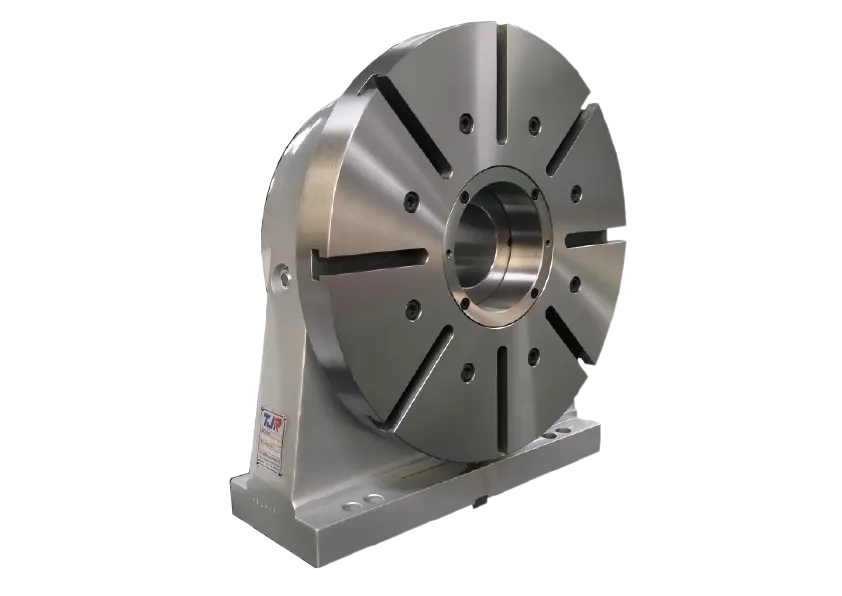

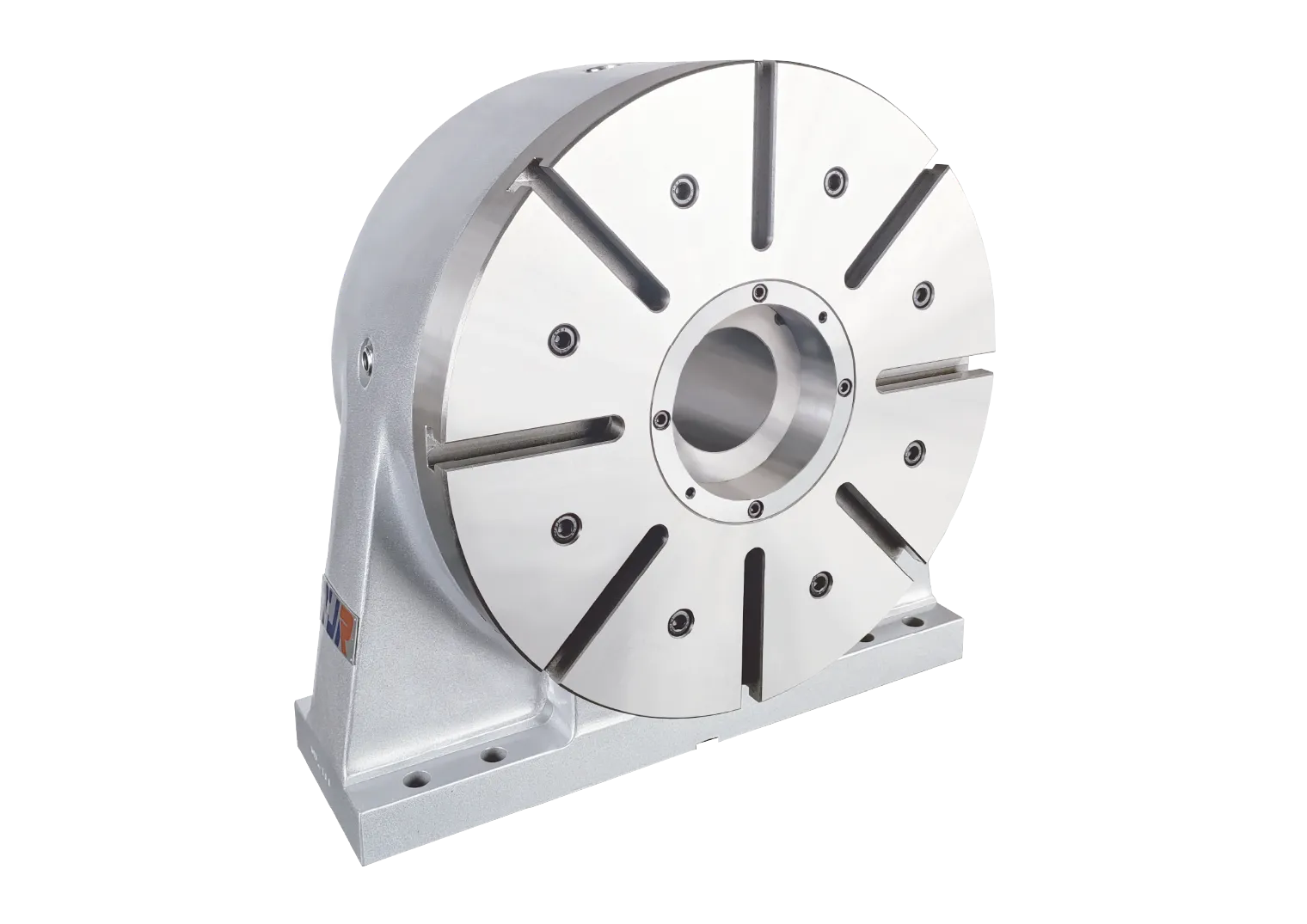

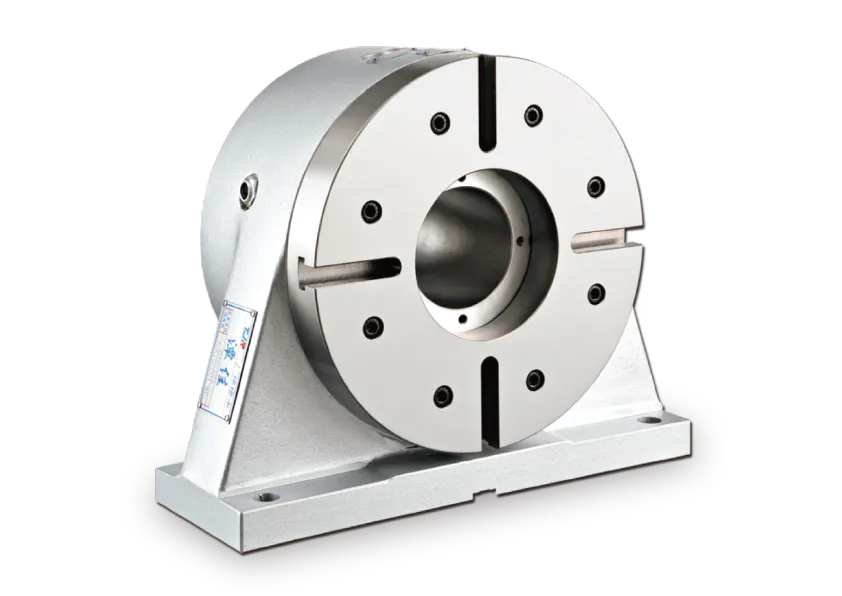

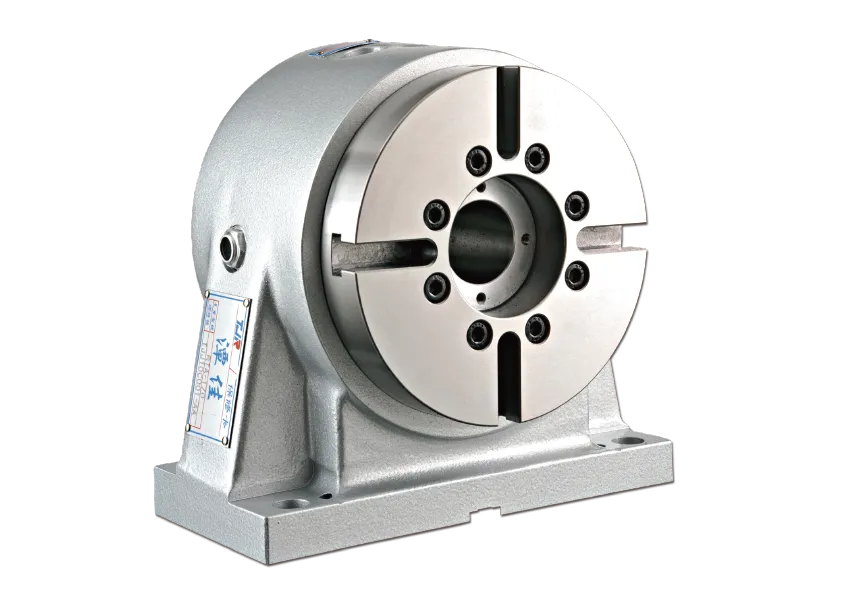

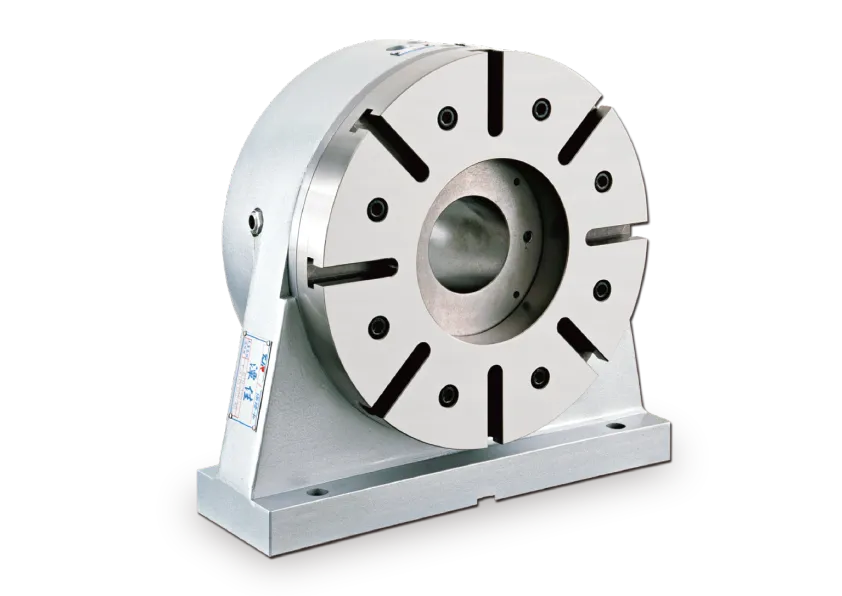

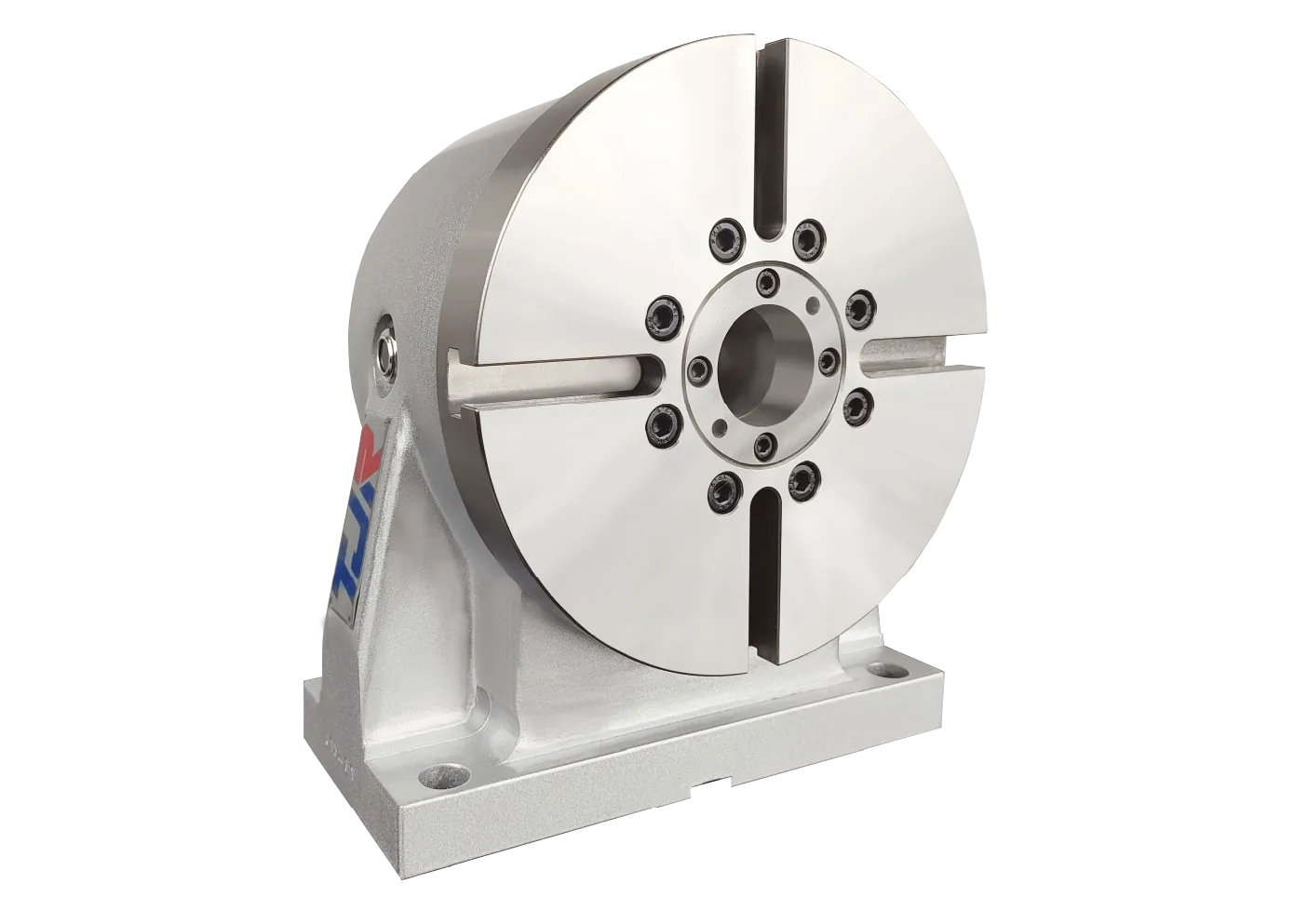

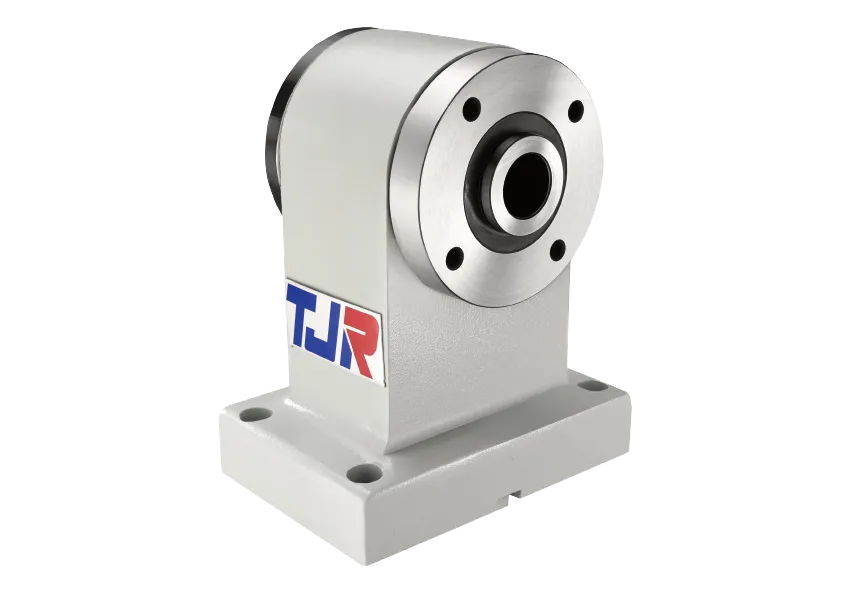

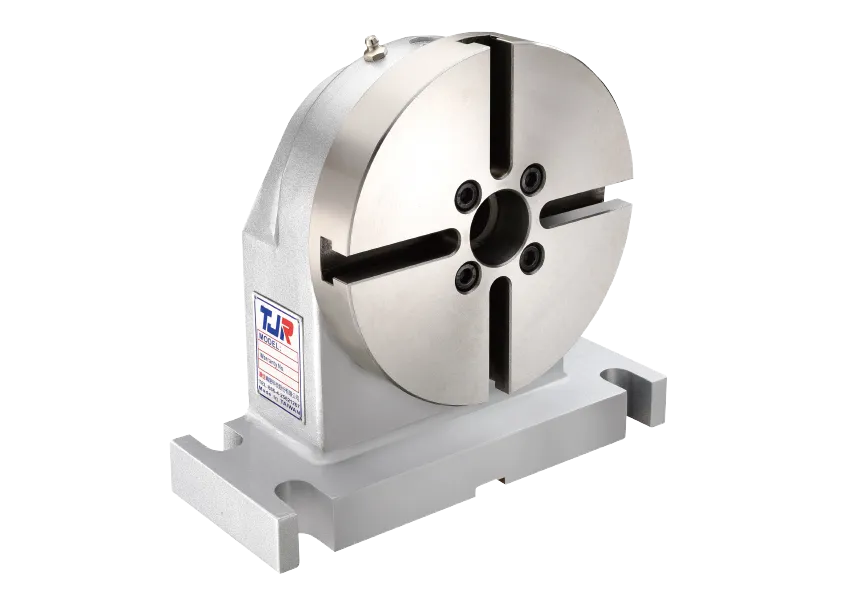

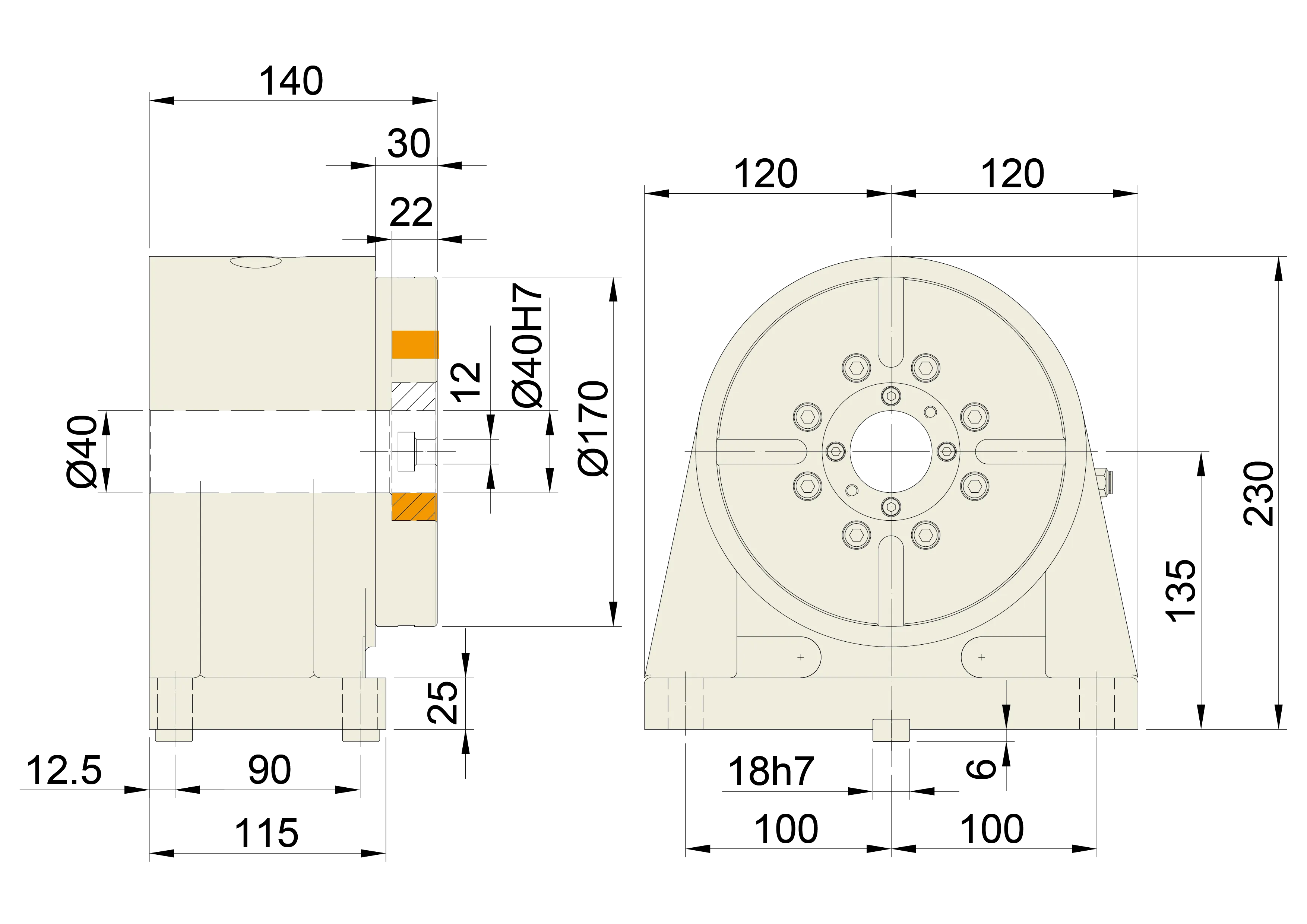

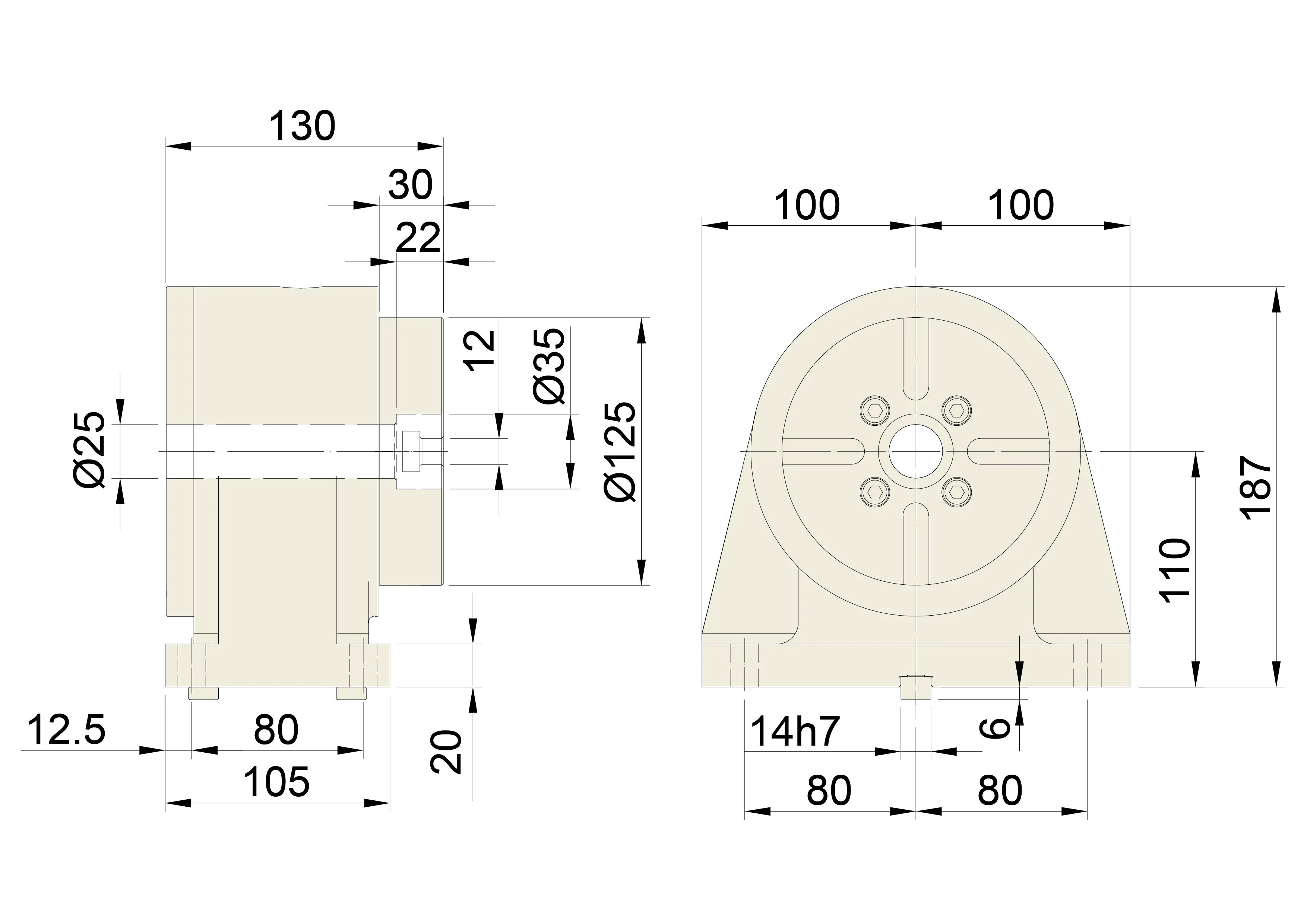

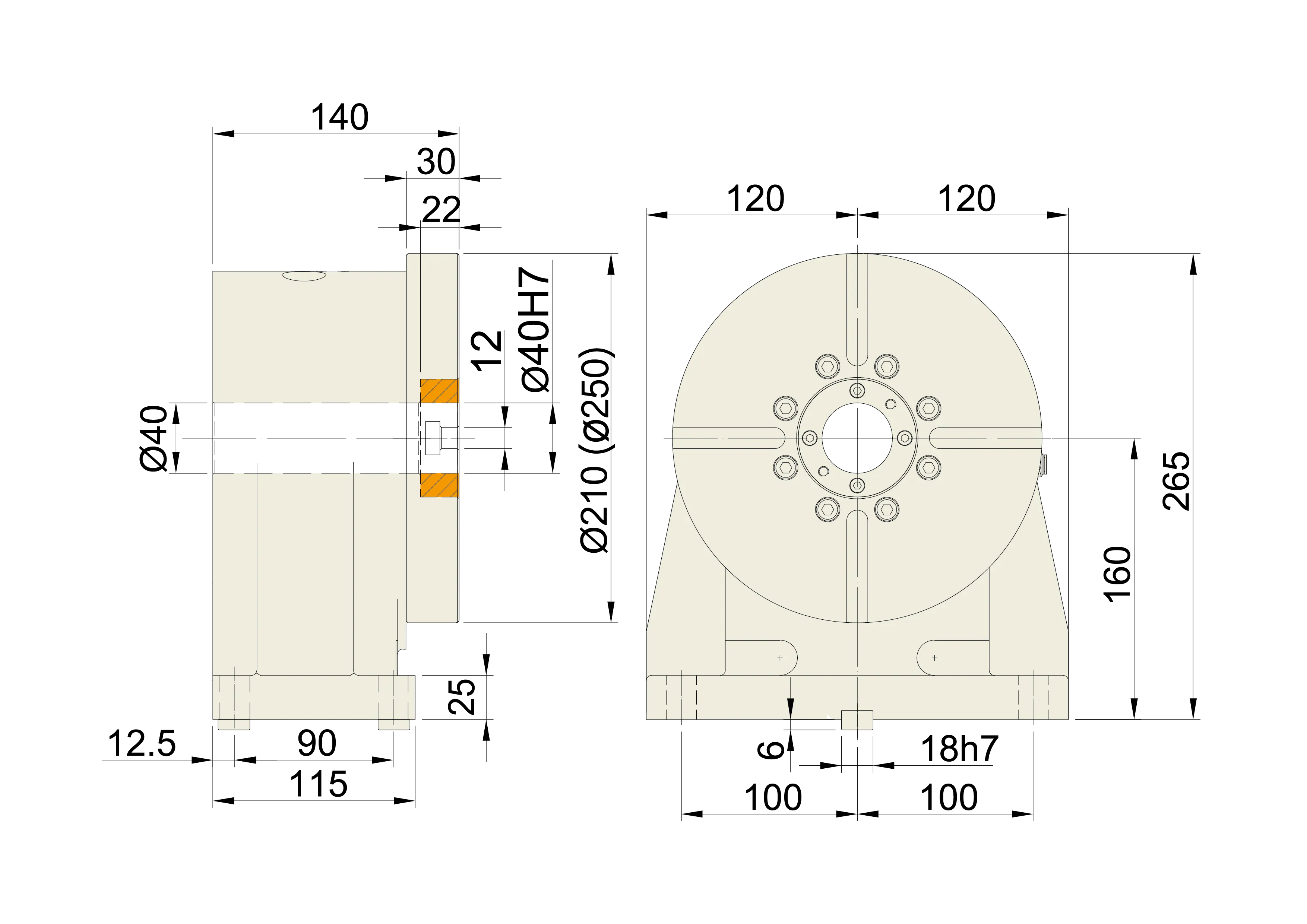

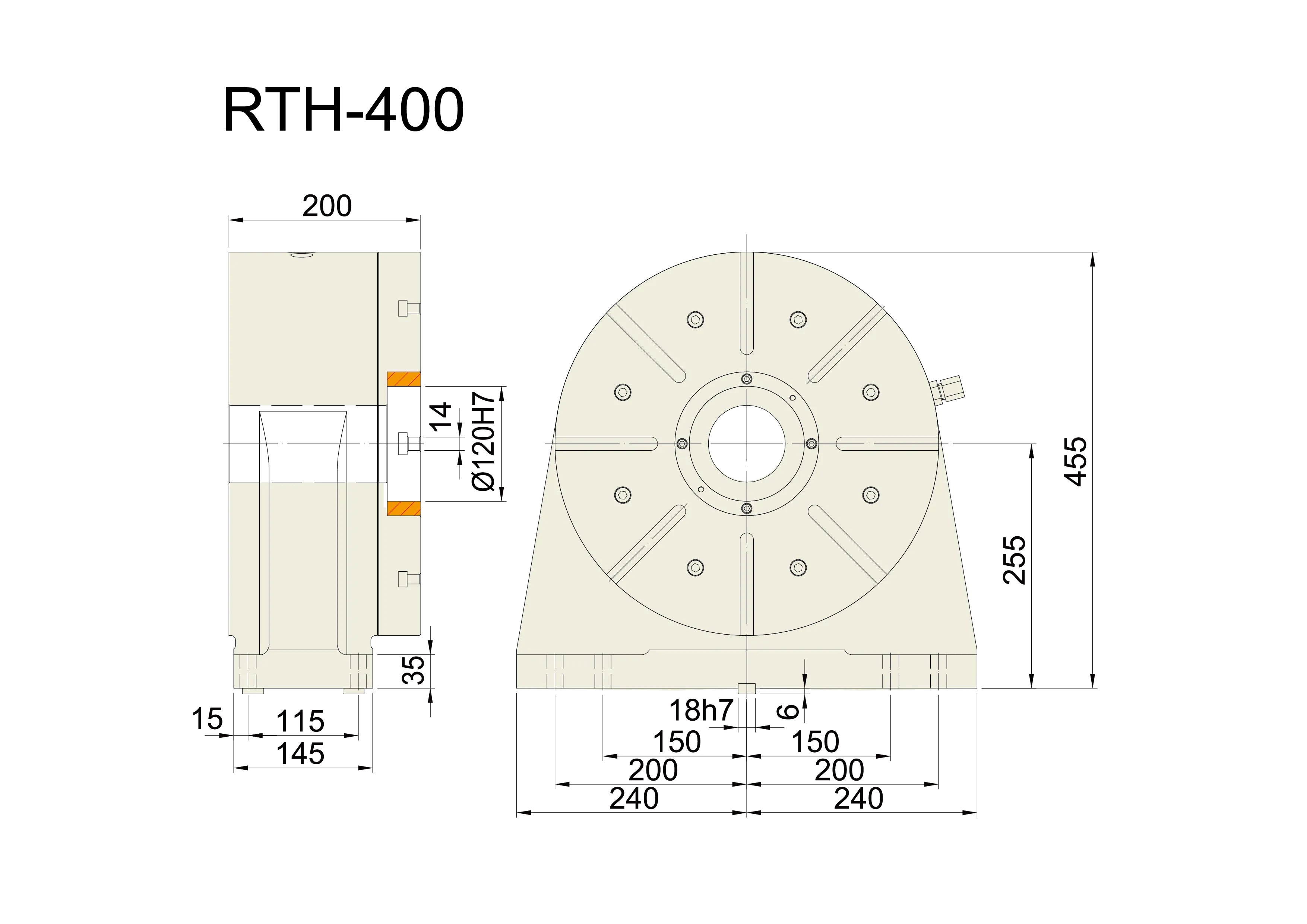

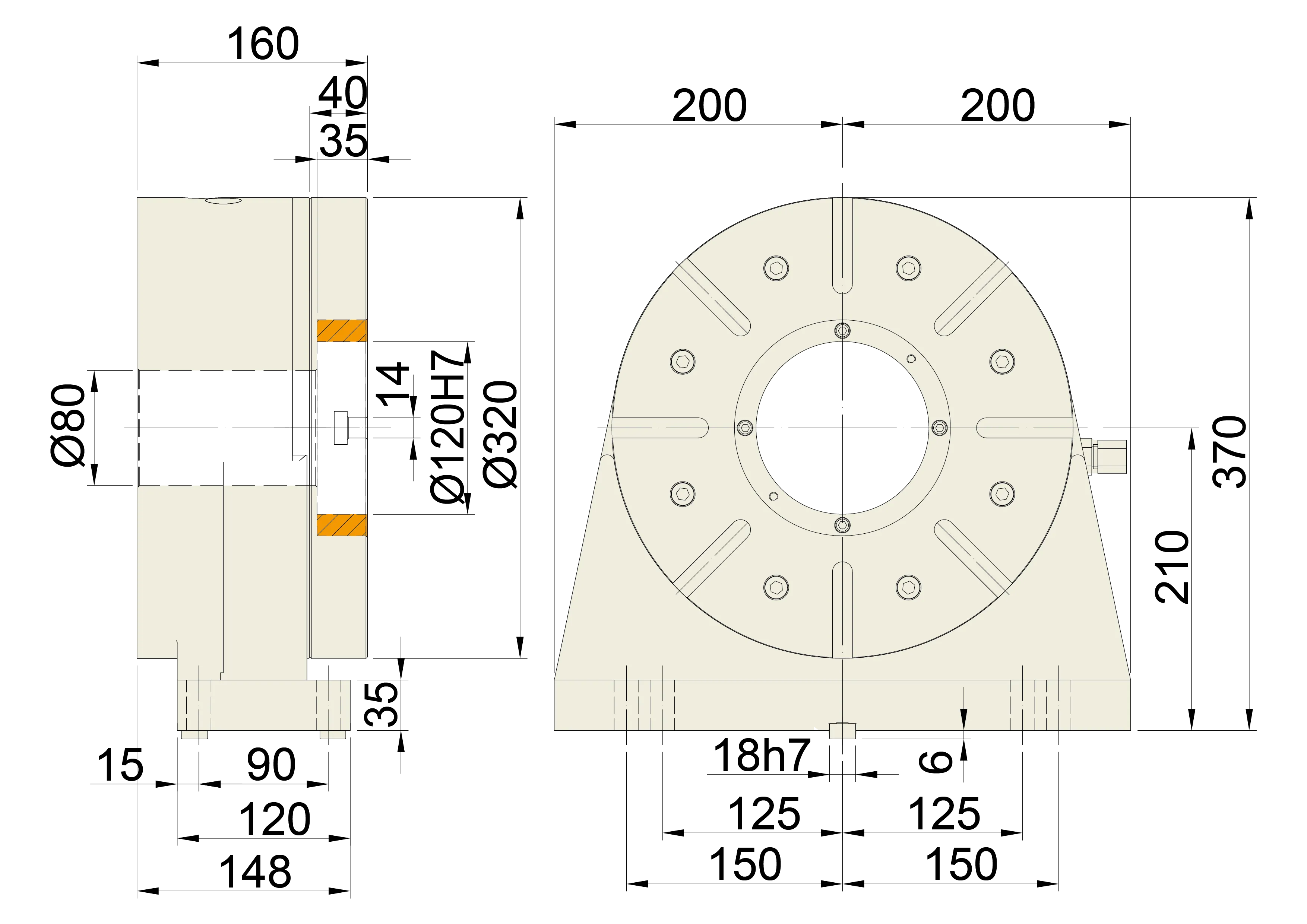

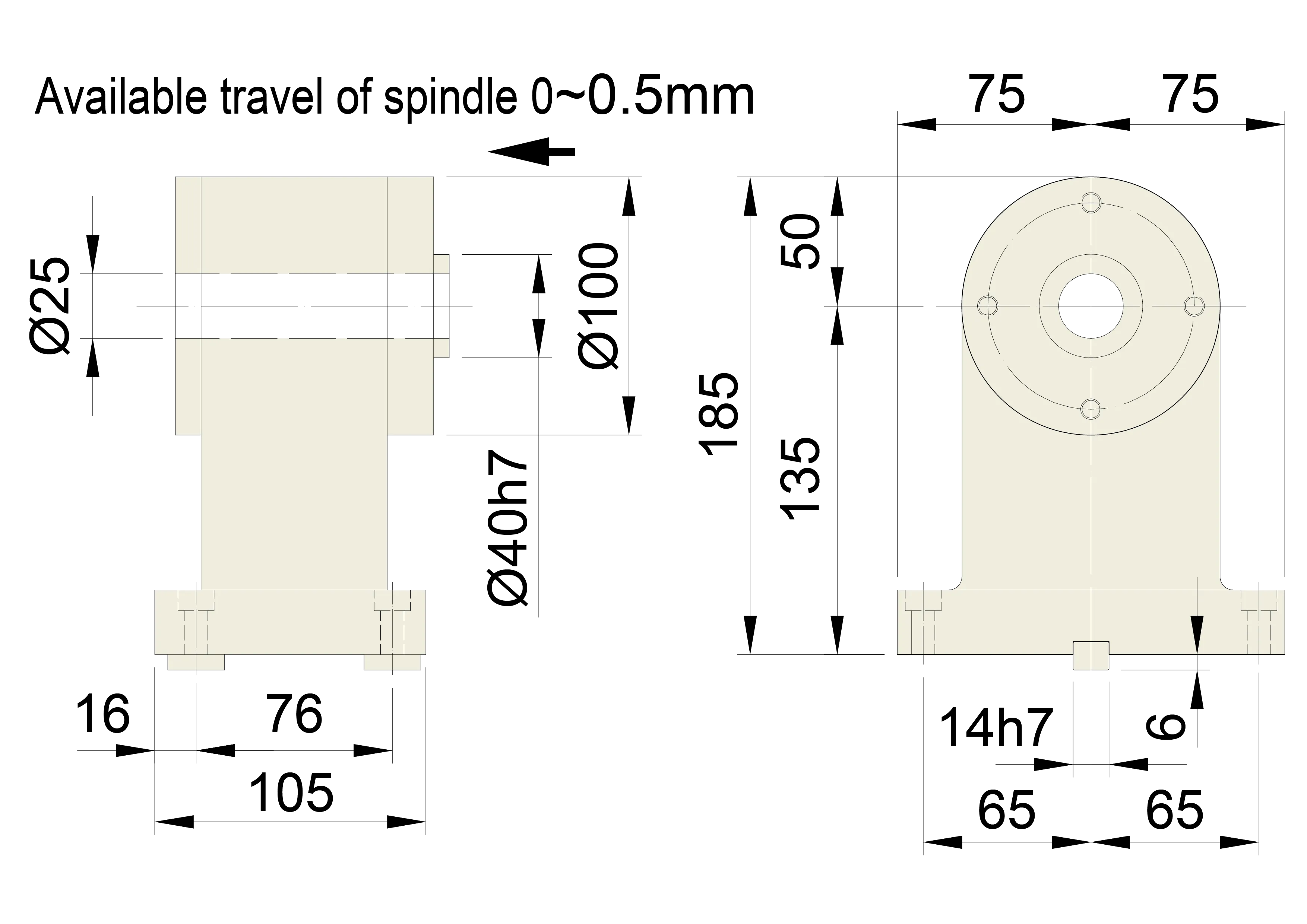

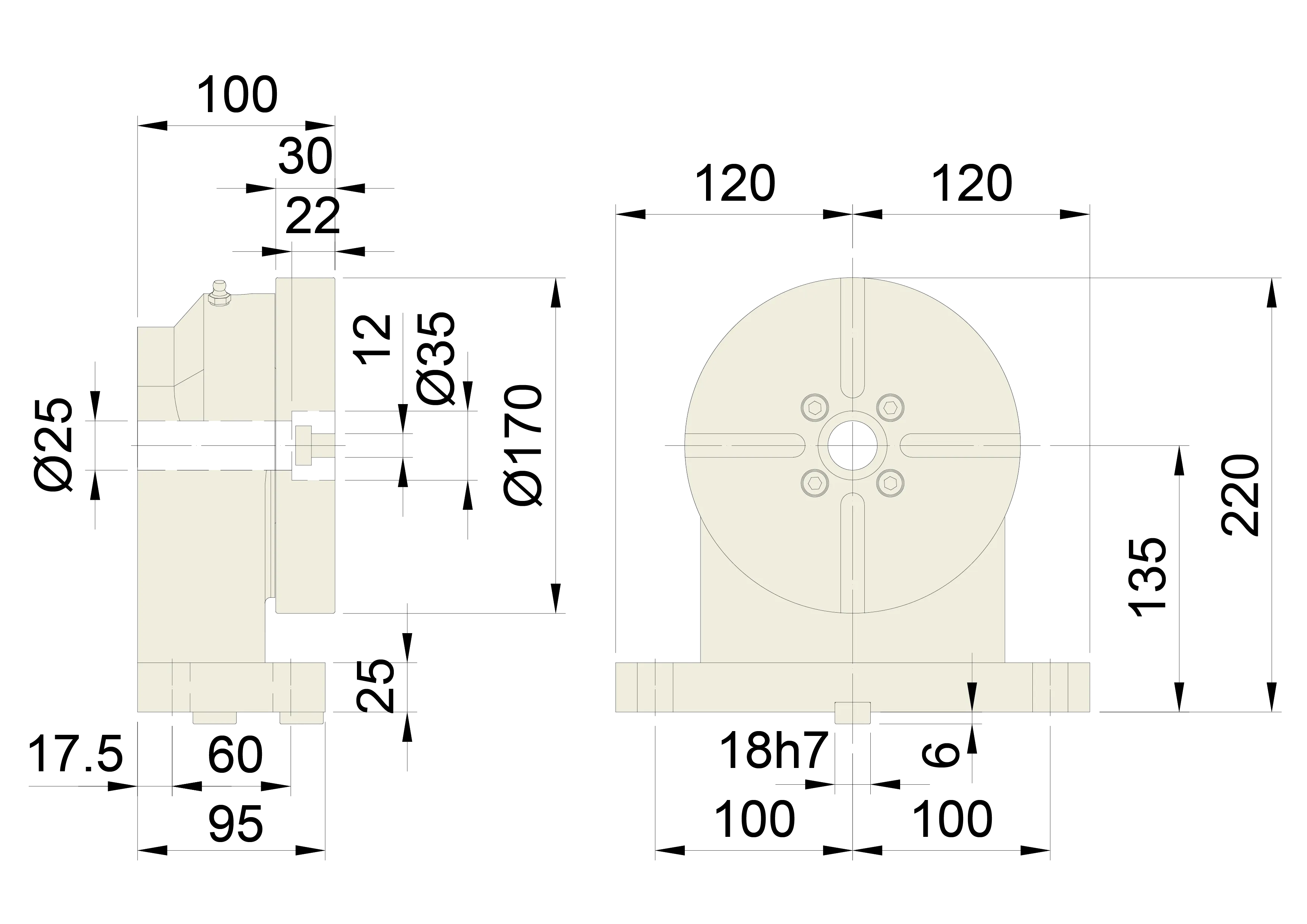

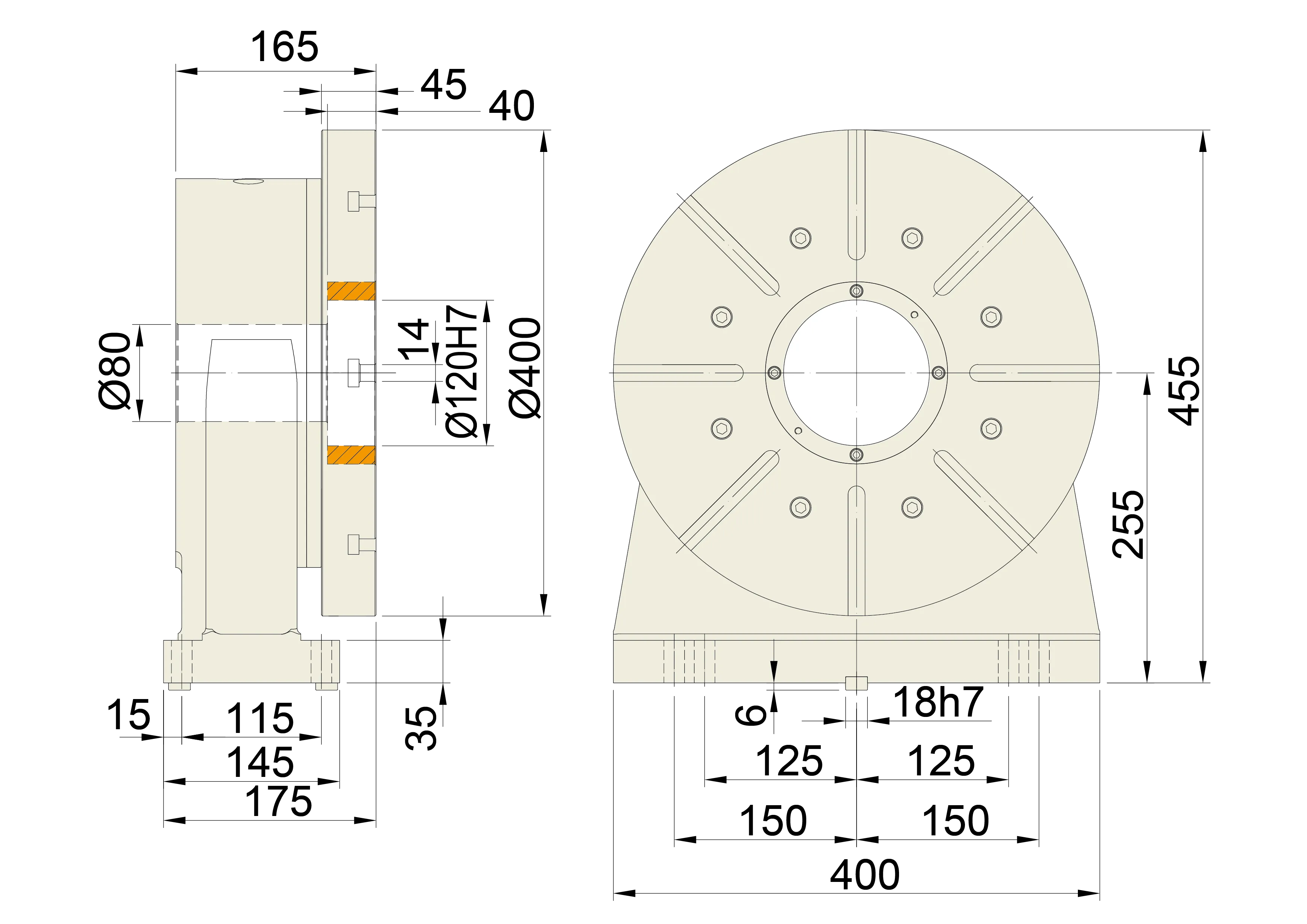

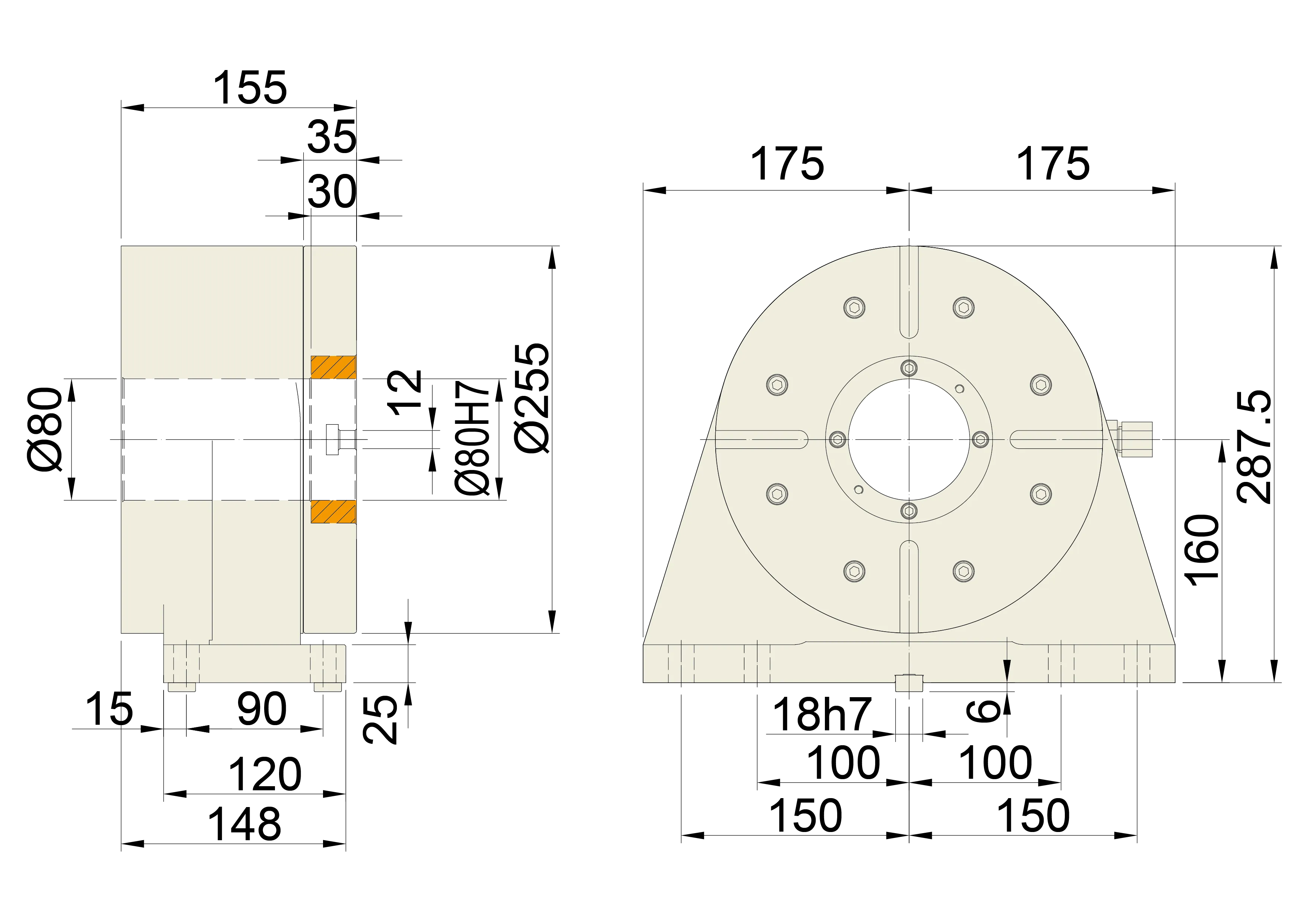

Support Table Product Specifications
| item | unit | RT-135 | RT-170F | RTA-125 | RTA-170 / RTA-170H | RTA-210 / 250 / RTA-210H / 250H | RTH-255 | RTH-320 | RTH-400A | RTH-400 |
|---|---|---|---|---|---|---|---|---|---|---|
| Table Diameter | mm | Ø100 | Ø170 | Ø125 | Ø170 | Ø210 / Ø250 | Ø255 | Ø320 | Ø400 | Ø400 |
| Inner Diameter of Mandrel Sleeve | mm | Ø35H7 | Ø40H7 | Ø35-H7 | Ø40H7 | Ø40H7 | Ø80H7 | Ø120H7 | Ø120H7 | Ø120H7 |
| Diameter of Center Through Hole | mm | Ø25 | Ø40 | Ø25 | Ø40 | Ø40 | Ø80 | Ø80 | Ø80 | Ø80 |
| Center Height (Vertical) | mm | 135 | 135 | 110 | 135 | 160 | 160 | 210 | 255 | 255 |
| Table T-slot Width | mm | - | 12H7 | 12H7 | 12H7 | 12H7 | 12H7 | 14H7 | 14H7 | 14H7 |
| Guide block Width | mm | 14h7 | 18h7 | 14h7 | 18h7 | 18h7 | 18h7 | 18h7 | 18h7 | 18h7 |
| Clamping System | MPa (kgf/cm²) | - | - | Pne. | Pne. / Hyd. | Pne. / Hyd. | Hyd. | Hyd. | Hyd. | Hyd. |
| Clamping Torque | N·m (kgf·m) | (-) | (-) | 128 (13) | 304 (31) / 540 (55) | 304 (31) / 540 (55) | 687 (70) | 1128 (115) | 1128 (115) | 1962 (200) |
| Allowable Workpiece Load | kg | 50 | 50 | 50 | 75 | 75 | 100 | 150 | 150 | 250 |
| Tailstock Total Weight | kg | 18 | 29 | 35 / 38 | 57 | 83 | 106 | 164 |
